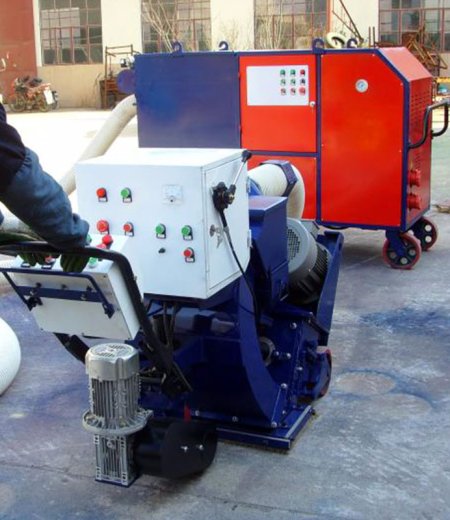

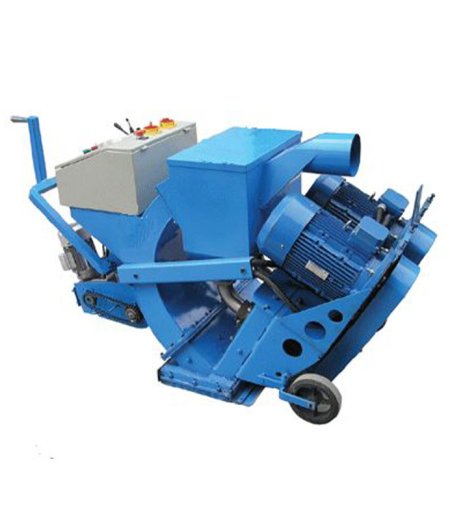

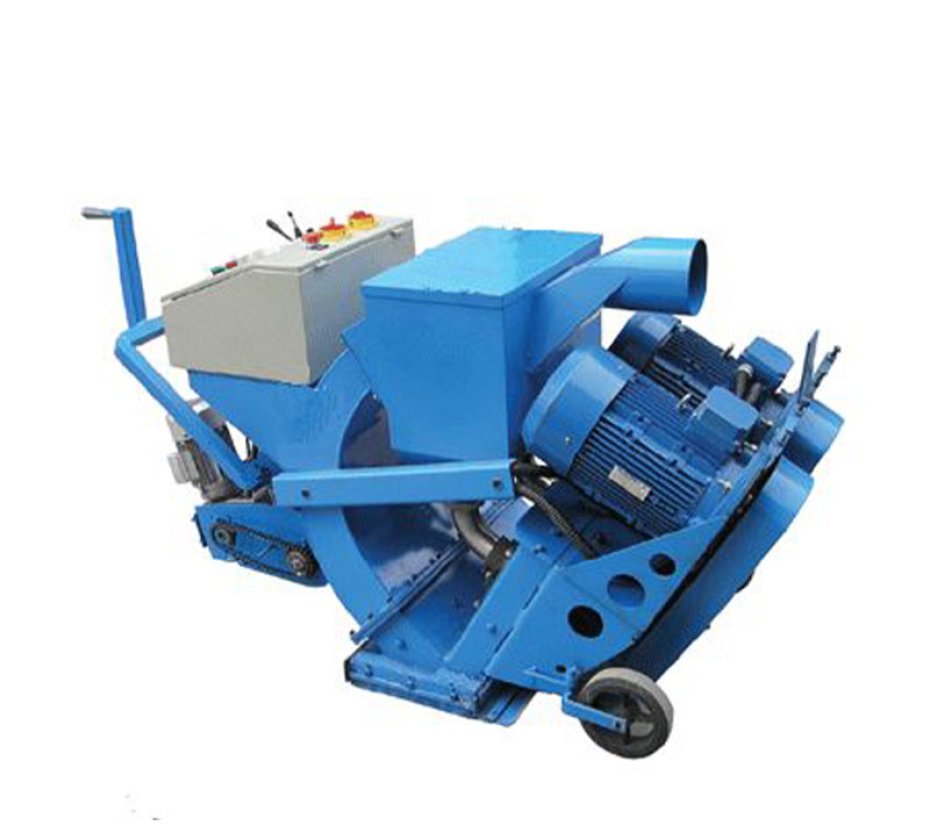

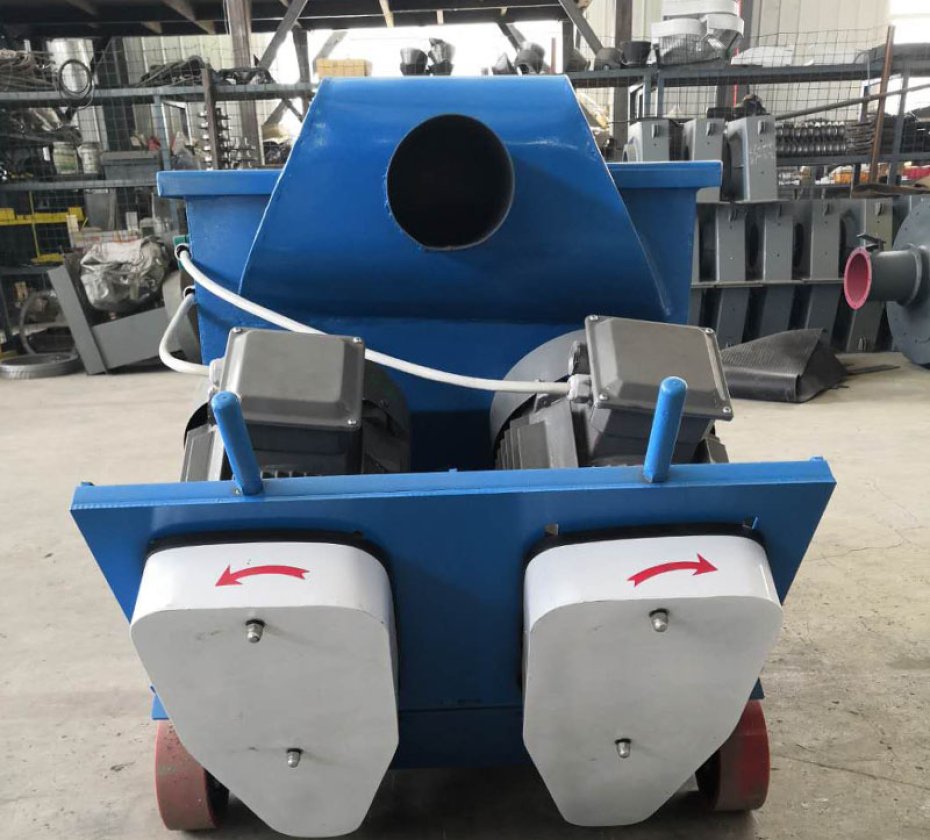

Our intergrated sheet plate shot blast machine features an integrated design that combines powerful blasting capabilities with ease of operation. It offers precise control over the blasting intensity, allowing you to tailor the process to different types of sheet plates and surface conditions. This flexibility makes it ideal for various industries, including automotive, construction, and manufacturing.
Built for durability, the machine is constructed from high-quality materials that ensure long-lasting reliability, even under heavy-duty use. Its robust design allows it to handle large volumes of sheet plates with consistent results, improving productivity and reducing labor time.
The machine also includes an advanced dust collection system that minimizes airborne particles, keeping your work environment cleaner and safer. With its compact design and factory-direct pricing, our integrated sheet plate shot blast machine offers both efficiency and cost-effectiveness for your metal surface preparation needs.
Serial Number | designation | specifications |
1 | cleaning range | 350mm |
2 | Shot blasting efficiency | On concrete≥180㎡/h |
3 | Shot blasting motor power | 15kw |
4 | Walking motor | 0.75kw |
5 | Dust removal fan | 4kw |
6 | Blow back motor | 2.2KW |
7 | Shot blasting wheel diameter | 200mm |
8 | Walking speed | 0.5-20 m/min |
9 | Dust collector connecting pipe diameter | 120mm |
10 | Suggested diameter of steel shot | 1.0-1.5mm |
11 | Steel shot consumption | 100g/㎡ |
12 | dust collector | Five core automatic back flow vacuum cleaner |
