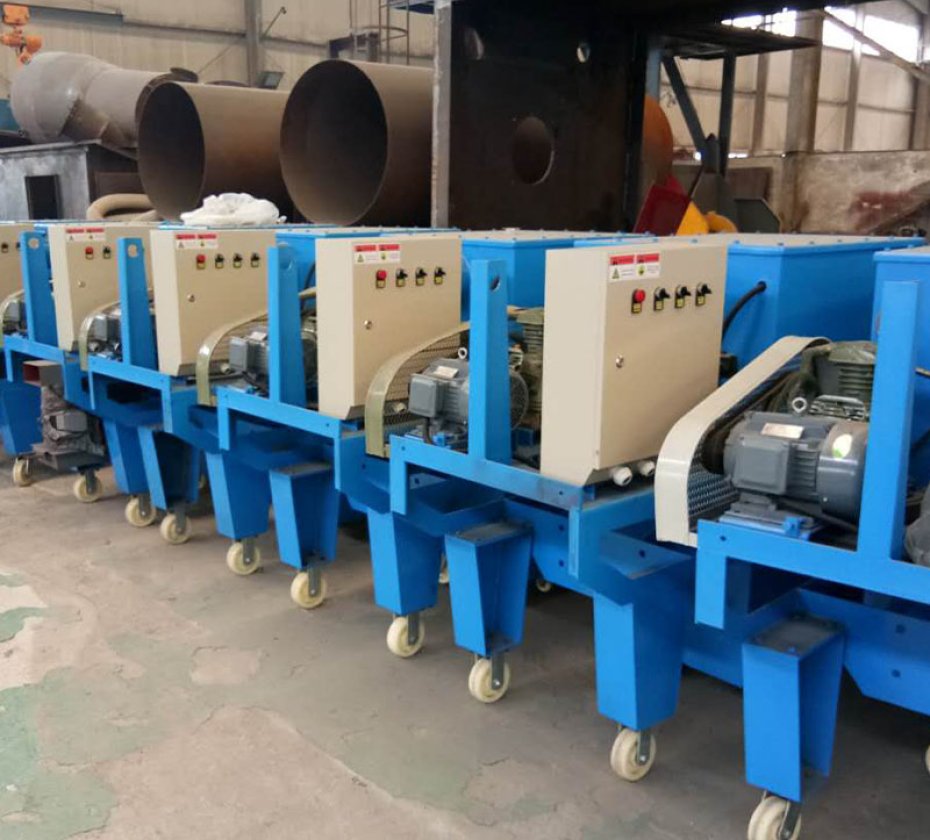

Our shot blasting machine features a powerful blasting system that removes contaminants, old coatings, and debris while creating a consistent surface texture. The adjustable settings allow for precise control over the intensity and coverage, catering to various concrete conditions and project specifications.
Designed for durability, the machine is constructed from high-quality materials to withstand the demands of heavy-duty use in bridge construction and maintenance projects. Its user-friendly interface and mobility ensure ease of operation and maneuverability, even in challenging work environments.
The integrated dust collection system minimizes airborne particles, promoting a cleaner and safer work area. Ideal for infrastructure projects, our bridge concrete roughness shot blasting machine offers reliable performance and cost-effectiveness, making it an essential tool for achieving professional-grade surface preparation.
Serial Number | designation | specifications |
1 | cleaning range | 1000mm |
2 | Shot blasting efficiency | On concrete≥600㎡/h |
3 | Shot blasting motor power | 2*18.5kw |
4 | Walking motor | 1.1*2kw(Dual drive motor) |
5 | Dust removal fan | 4kw |
6 | Blow back motor | 4KW |
7 | Shot blasting wheel diameter | 200mm |
8 | Walking speed | 0.5-20 m/min |
9 | Suggested diameter of steel shot | 1.0-1.5mm |
10 | Steel shot consumption | 100g/㎡ |
11 | dust collector | Eight core automatic back flow vacuum cleaner |
