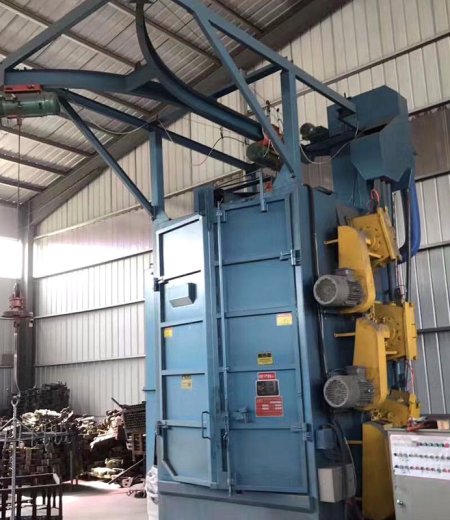

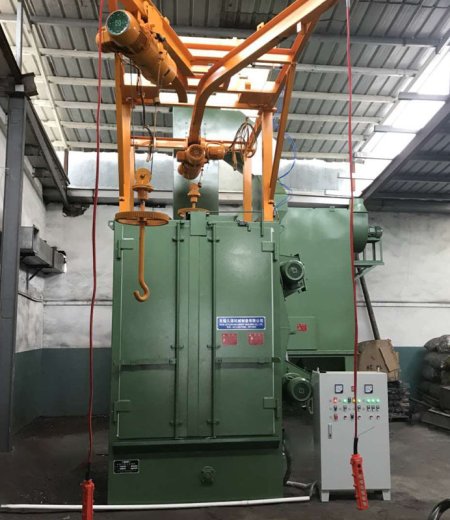

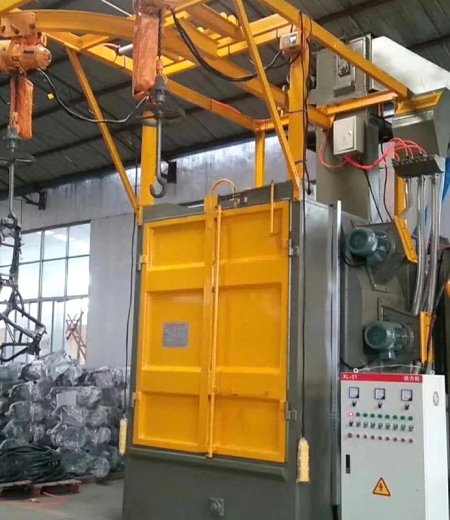

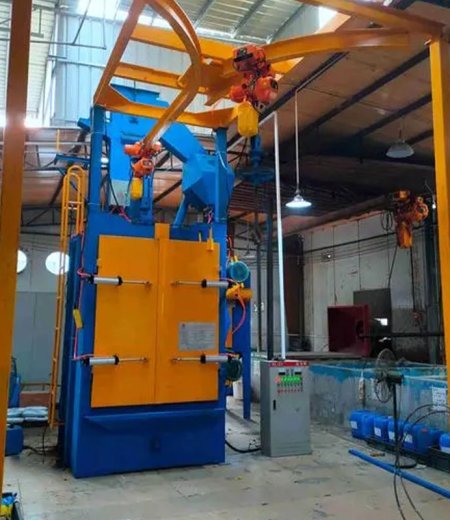

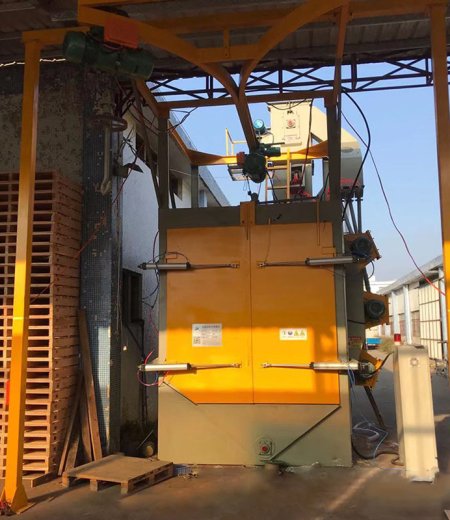

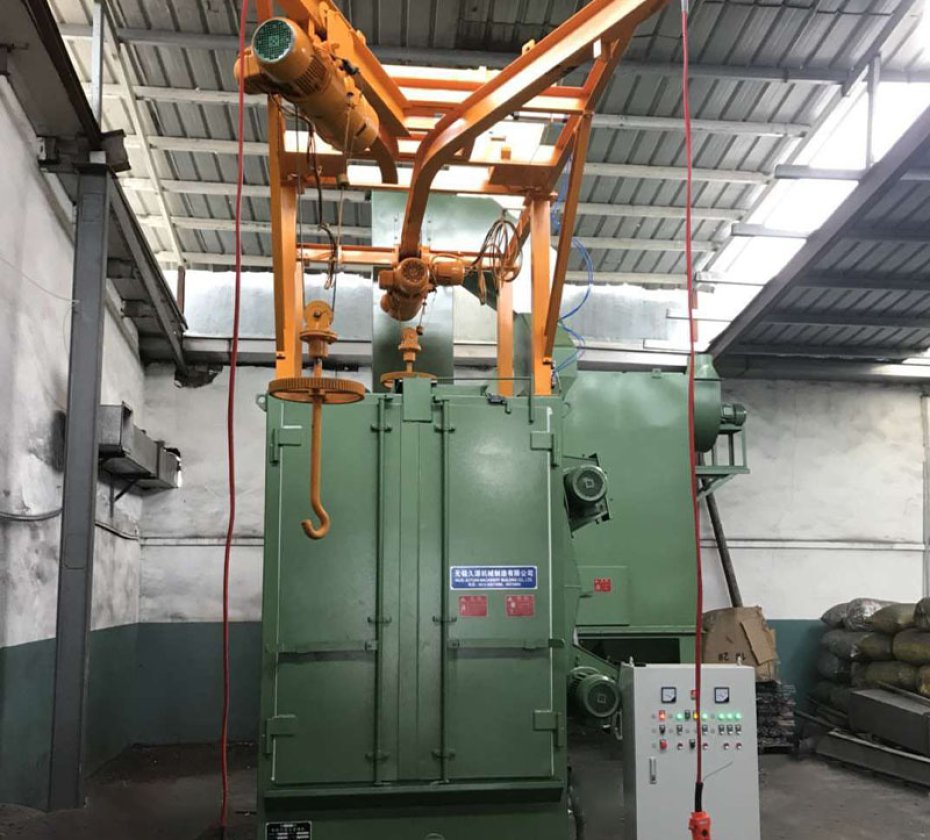

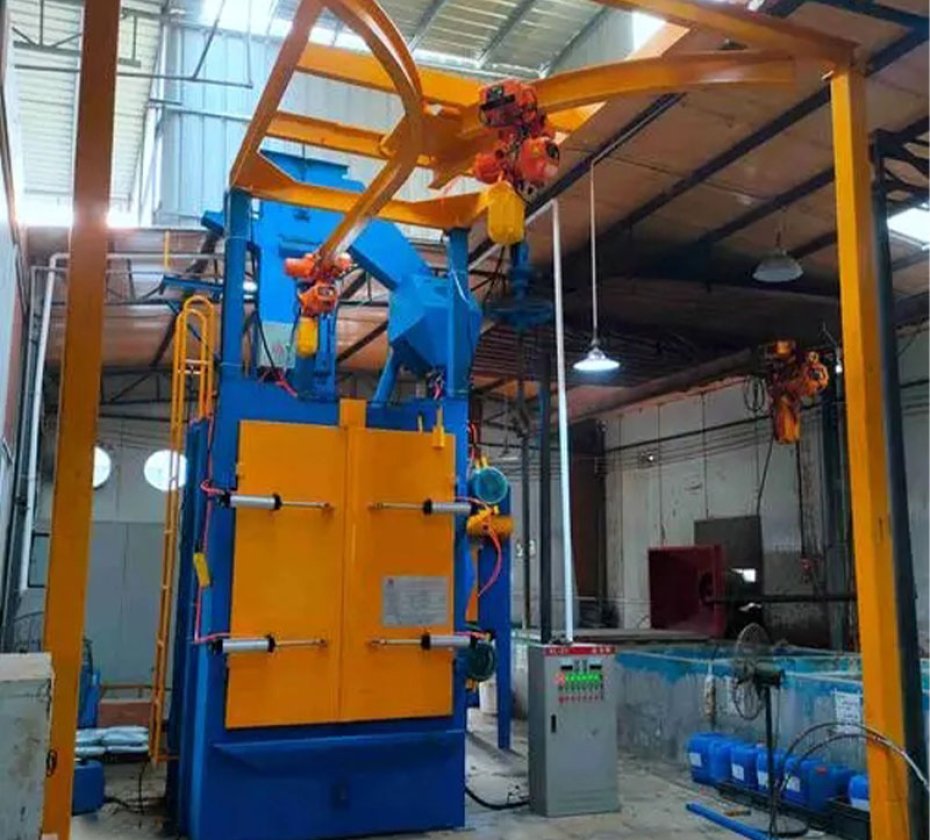

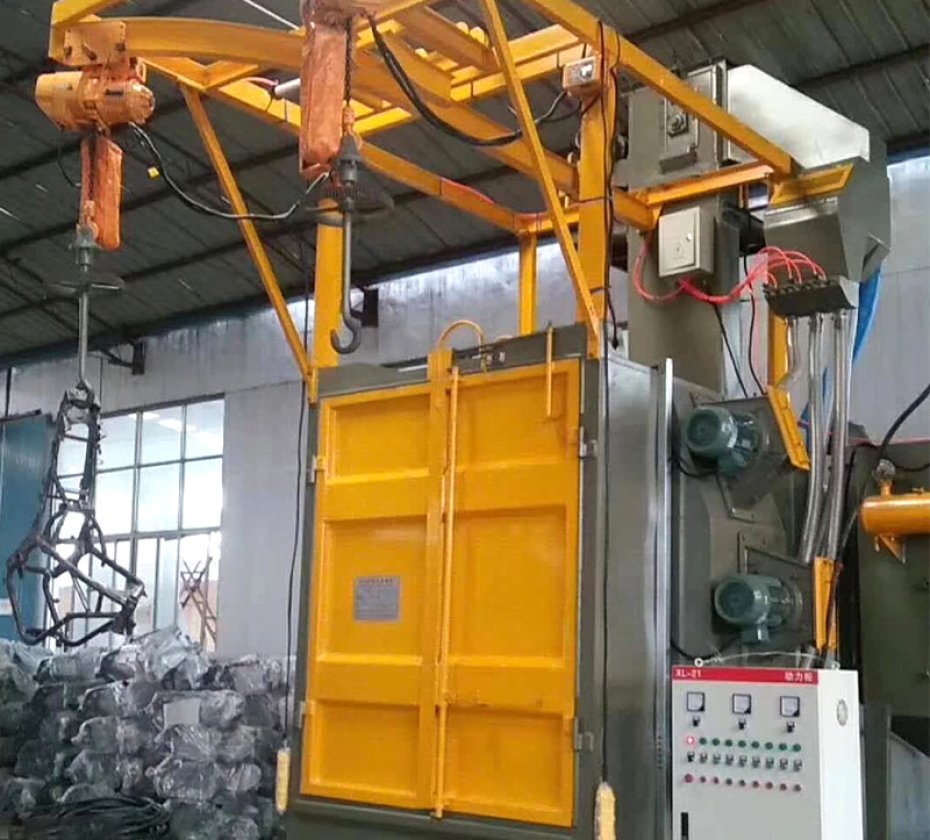

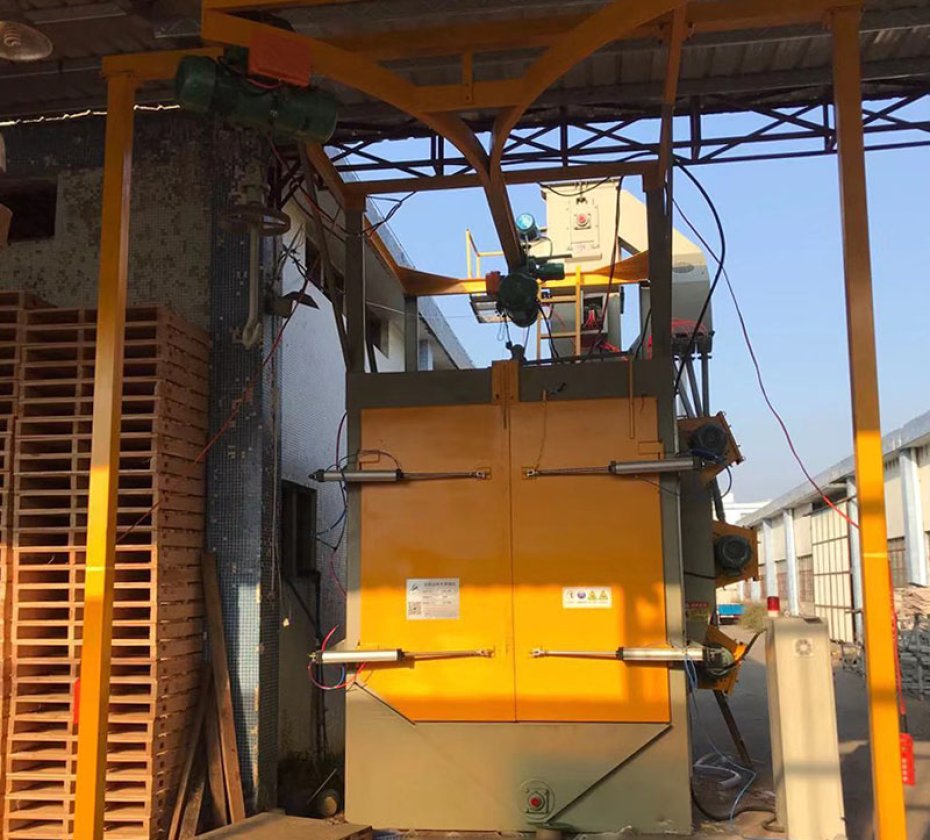

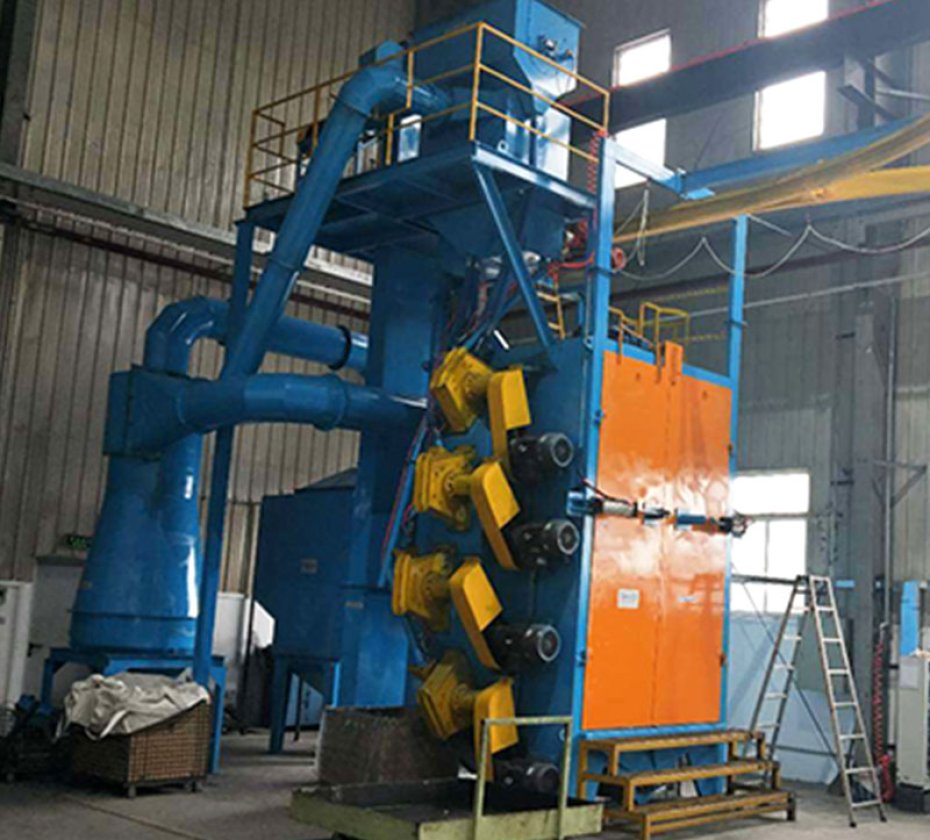

Q37 hook type shot blasting machine

Q37 Hook Hanger Shot Blasting Machine is suitable for surface cleaning, rust removing, oxide skin removal and welding slag removal of various medium, or small castings, forging, heat treatment workpieces.

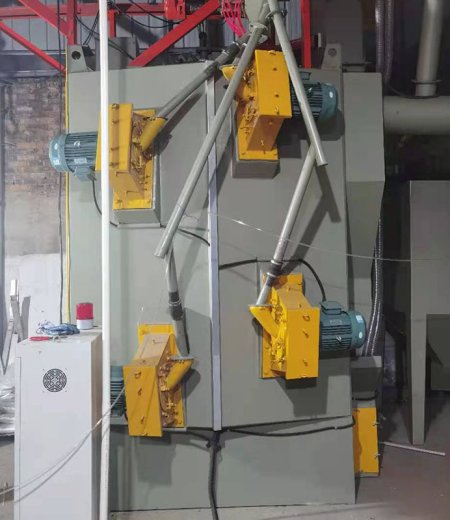

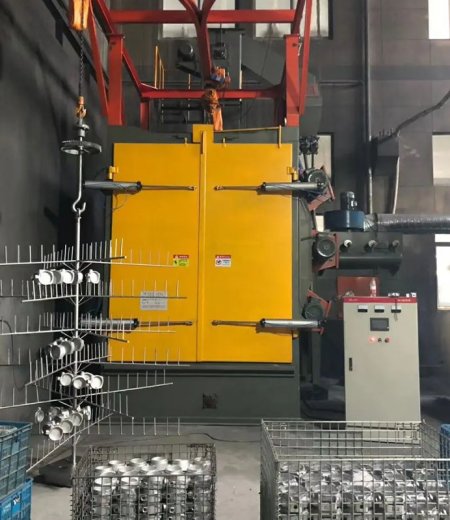

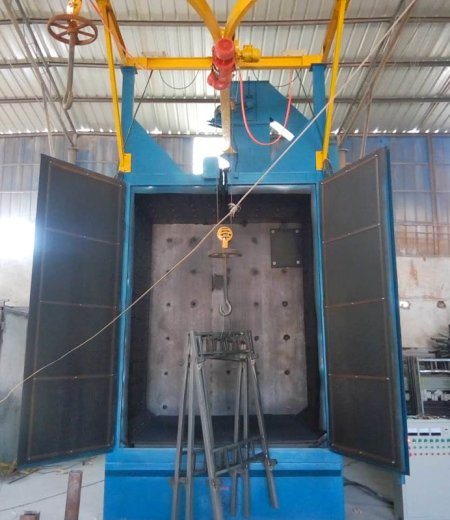

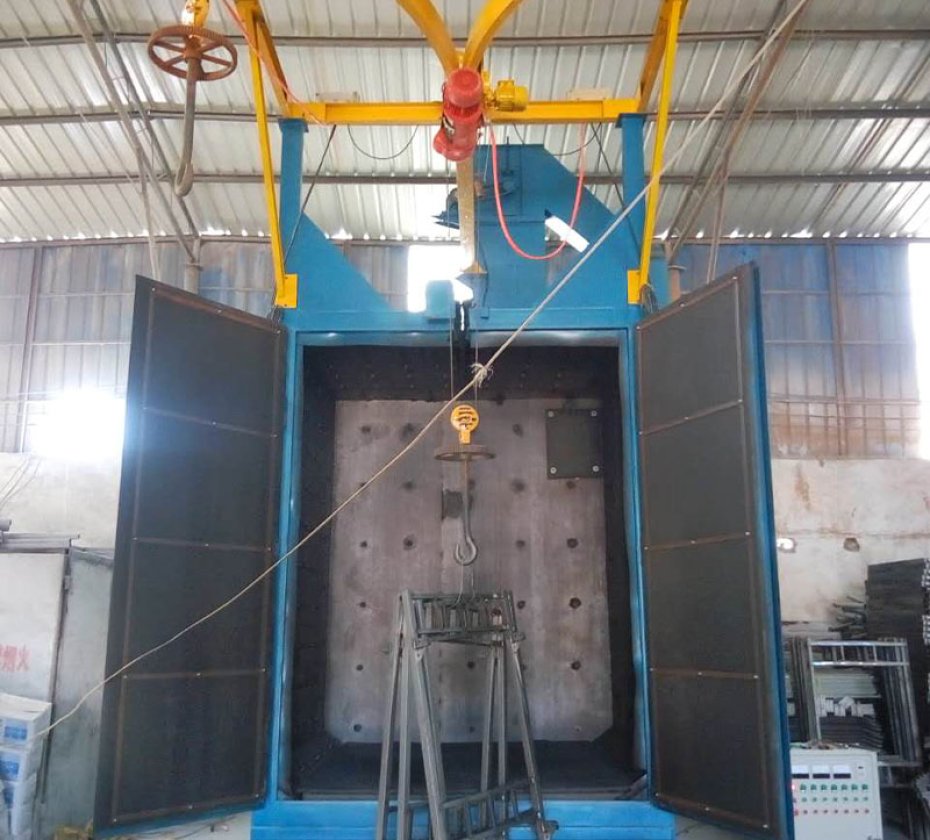

Q37 Series Hook Type Shot Blasting machine is for surface cleaning or strengthening treatment of castings, forging parts in industry of foundry, building, chemical, motor, machine tool etc. It is special for surface cleaning and blasting strengthening on various types, small production castings, forging parts and steel construction parts for clearing little viscous sand, sand core and oxide skin. It is also suitable for surface cleaning and strengthening on heat treatment parts, especially for cleaning slightness, thin wallparts which is not suitable for impact. Spinner Double Hanger Hook Type Shot Blasting Machine is blast cleaning equipment for casting parts, forging parts and small fabricated metal work pieces. Bigger work pieces can be put on hanger hook uniquely. Smaller work pieces will be put on special tooling and then put on hinger hooks. After loading work pieces, hanger hooks will be driven into blasting chamber along T or Y overhead rails. Work pieces are rotating in blasting chamber to get steel shot impact from blasting wheels mounted on one side chamber wall. The other side of chamber wall is called hot area because it get strong abrasive flow. Hot area is protected by Mn alloy liners. After 3-5 min blast cleaning, work pieces will go out along T or Y overhead rails.

Inquire now Add To Inquiry Basket

product details

Key Features

Hook-type design for easy handling and versatility

Efficient shot blasting for thorough surface cleaning

Adjustable settings for various workpiece sizes and types

Durable construction for long-term performance

Cost-effective solution with competitive pricing

Technical parameter

Model	Workpieces Size (mm)	Single Hook load (kg)	Blasting Capacity (kg/min)	Lifting Capacity (t/h)	Separation Capacity (t/h)	Ventilation Capacity (m³/h)	Power (excluding dedusting) (kw)	Dimension
Q376	Φ600*1100	500	2*120	15	15	5000	19	442928503443
Q378	Φ800*1500	1000	2*200	22	22	8000	32.5	432526605009
Q3710	Φ900*1600	1000	2*250	30	30	9000	36.55	504738505156
Q3720	Φ1400*2300	2000	3*250	45	45	15000	61.27	611035997842
Q3730	Φ1600*2300	3000	3*250	45	45	15000	64.4	708546508652
Q3750	Φ1800*2500	5000	4*250	60	60	18000	78.4	706254608652
Q3780	Φ2000*3000	8000	4*250	60	60	20000	81.5	805064008526
