The steel strip shot blasting cleaning machine is specifically designed for high-performance shot blasting, descaling, and surface cleaning of carbon steel strips, stainless steel strips, and low alloy strips. This equipment replaces the traditional process of using acid washing to treat the surface of workpieces, and the surface smoothness and quality after descaling and cleaning are excellent. By adjusting the amount of abrasive, high rust and scale removal efficiency can be sustainably maintained, ensuring uniform and efficient quality of the processed strip steel. This machine is more environmentally friendly and efficient. It has the characteristics of fast cleaning speed, high surface quality, and fully automatic through type. It can be used alone or in wiring, and is currently widely used in stainless steel products and other similar industries.
User-Friendly Operation: The machine is equipped with intuitive controls and a user-friendly interface, making it easy for operators to navigate and adjust settings as needed. Additionally, comprehensive documentation and technical support are available to ensure a smooth and efficient operation.

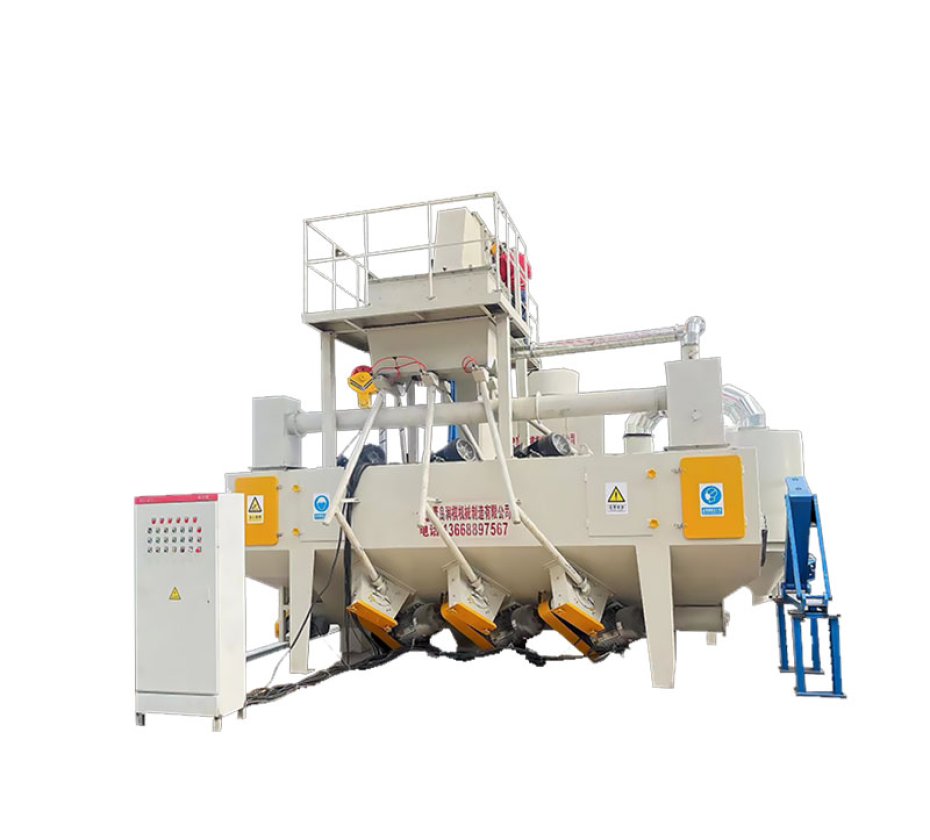

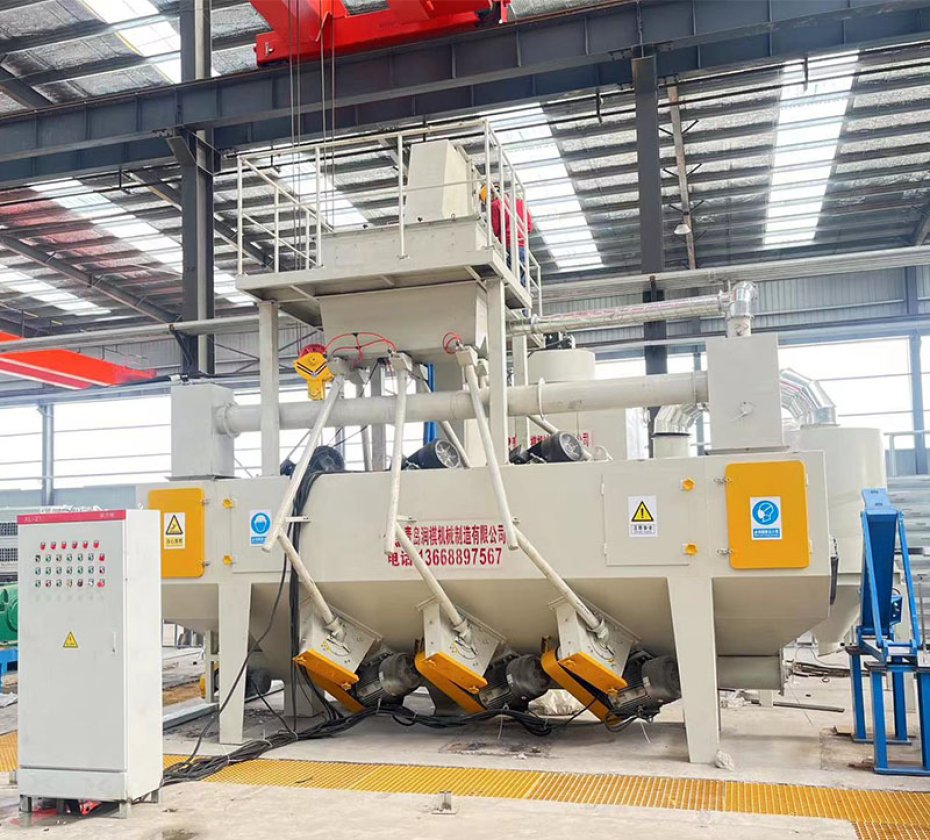

Versatile Application: The SS6912 Steel Strip Shot Blasting Machine is suitable for a wide range of industries, including automotive, construction, aerospace, and more. Its versatility makes it an essential tool for any manufacturing or processing facility that requires precision surface preparation of steel strips.
Serial Number | designation | specifications |
1 | cleaning range | 500*100 (mm) |
2 | Working pieces | Steel strip |
3 | Blasting capacity | 6*360((kg/min) |
4 | Lifting capacity | 132 T/H |
5 | Separation capacity | 132 T/H |
6 | Ventilation Capacity (m³/h) | 19000 m³/H |
7 | Shot blasting wheel diameter | 400mm |
8 | Suggested diameter of steel shot | 1.0-1.5mm |
9 | Steel shot consumption | 100g/㎡ |
10 | dust collector | automatic back flow bag dust collector |
