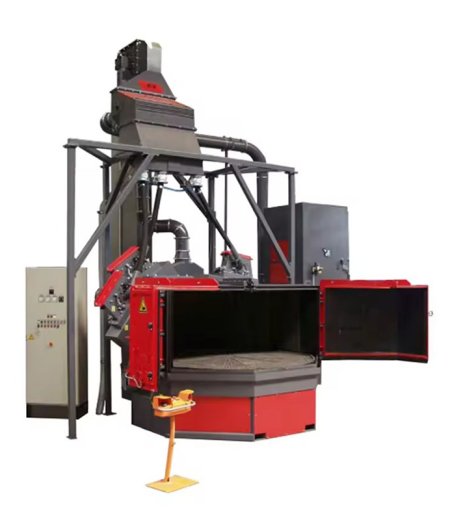

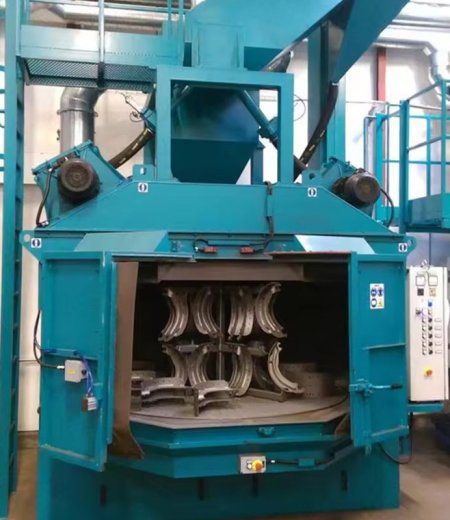

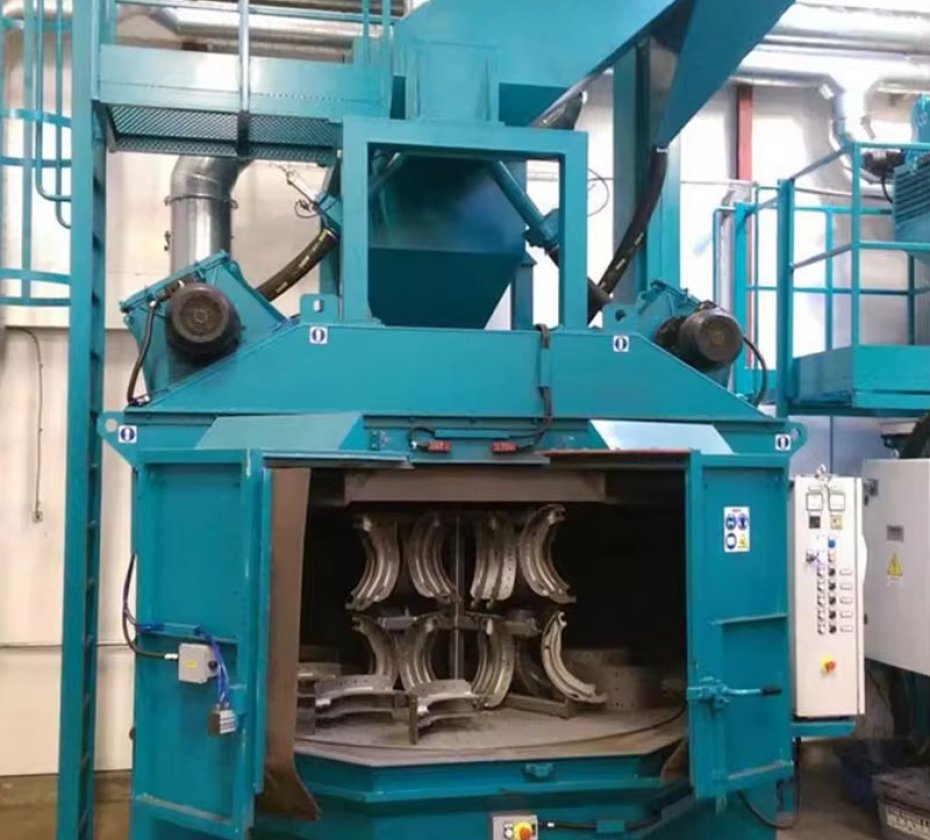

Rotating plate shot blast machine is suitable for surface strengthening of compressed work piece, the work piece is in the turntable and is blasted from vertical direction. suitable for surface rust removal and strengthening of engine connecting bar, gear, shell cover wall, clutch friction part.
Choose our turntable shot blast machine, for it has advantages of high productivity, good sealing effect, compact composition and made using high technology. You can use this machine in casting, car, war factory, any foundry place in your needs.
turntable shot blast cleaning machine is mainly used in clean and strengthen the surface of the casting,and used in removing oxide and welding dregs. It is widely suited for the field of oil casting, forging, machinery, iron and steel industry .
Main features:
Efficient and Thorough Cleaning: The high speed of the abrasive media ensures effective removal of surface contaminants without damaging the workpiece.
Cost-effective: Continuous circulation of grinding media and automatic recovery system reduce material waste and reduce operating costs.
Increased productivity: The turntable system precisely controls the machine's movement, ensuring complete coverage of the workpiece and reducing processing time.
Environmentally Friendly: The dust collection system minimizes environmental pollution by capturing and filtering generated dust and debris.
Technical Parameters
Item | Unit | Q3515 | Q3520 | Q3525 |
Productivity | t/h | 2-3 | 2-4 | 3-5 |
Maxi weight of single workpiece | kg | 300-500 | 500-800 | 500-1000 |
Diameter of end disk | mm | Φ 1500 | Φ2000 | Φ 2500 |
Abrasive flow rate | Kg/min | 2*120kg | 2*180kg | 2*260kg |
Ventilation capacity | M³/h | 4000 | 5800 | 7000 |
Power consumption | kw | 26 | 35 | 45 |
Shot blasting chamber is lined with wearable protection board , and clamped with the protective cap. It is convenient to disassembly and replacement. Protection plates adopt lap joint type to protect. This machine mainly used in cleaning and strengthening the surface of the castings, and used in removing oxide and welding dregs ,it is widely suitable for the field of oil casting, forging,machinery, iron and steel industry.
Applications:
Rust and heat scale removal
Paint stripping
Surface texturing
Reparation for painting, bonding and plating
Corrosion removal
Deburring, deflashing
Cleaning
Cosmetic finishing
Split type machine (include :main shot blasting machine and dust collector)
Split type machine (include :main shot blasting machine and dust collector)
The steel strip shot blasting cleaning machine is specifically designed for high-performance shot blasting, descaling, and surface cleaning of carbon steel strips, stainless steel strips, and low alloy strips.
Tower outer wall shot blasting machineis suitable for cleaning the outer wall of tower to remove the sand and rust on the surface of the workpiece.
