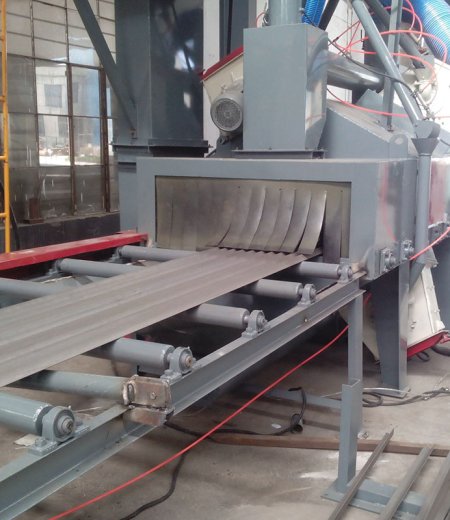

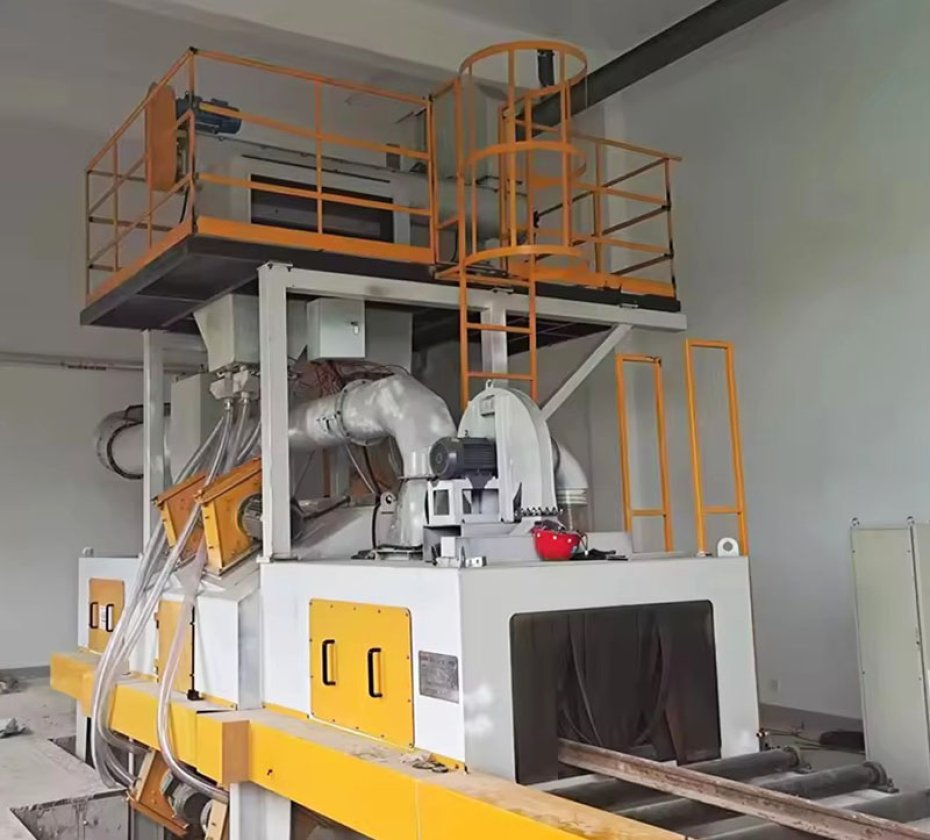

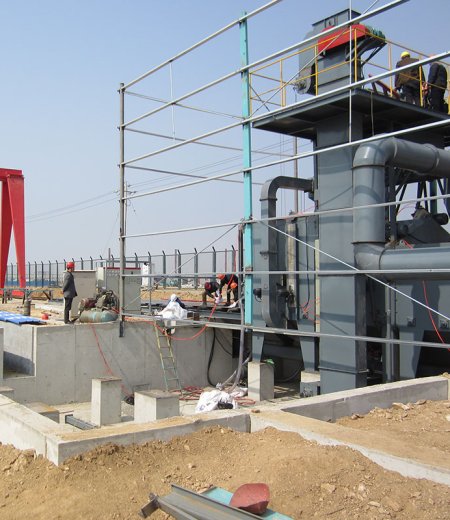

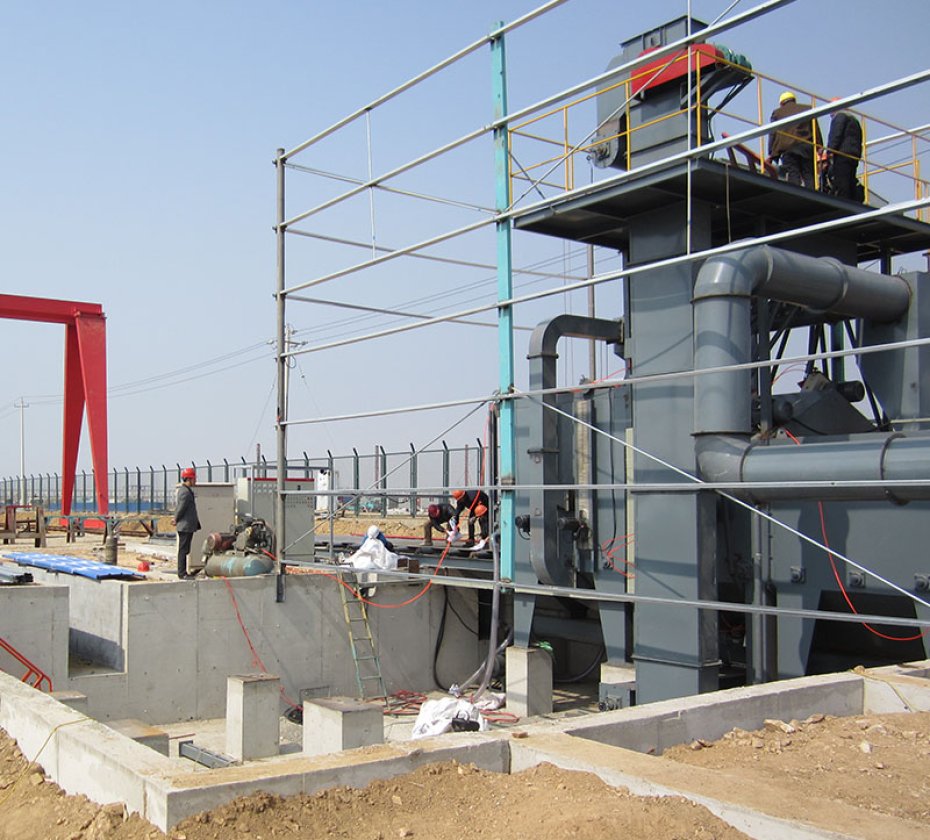

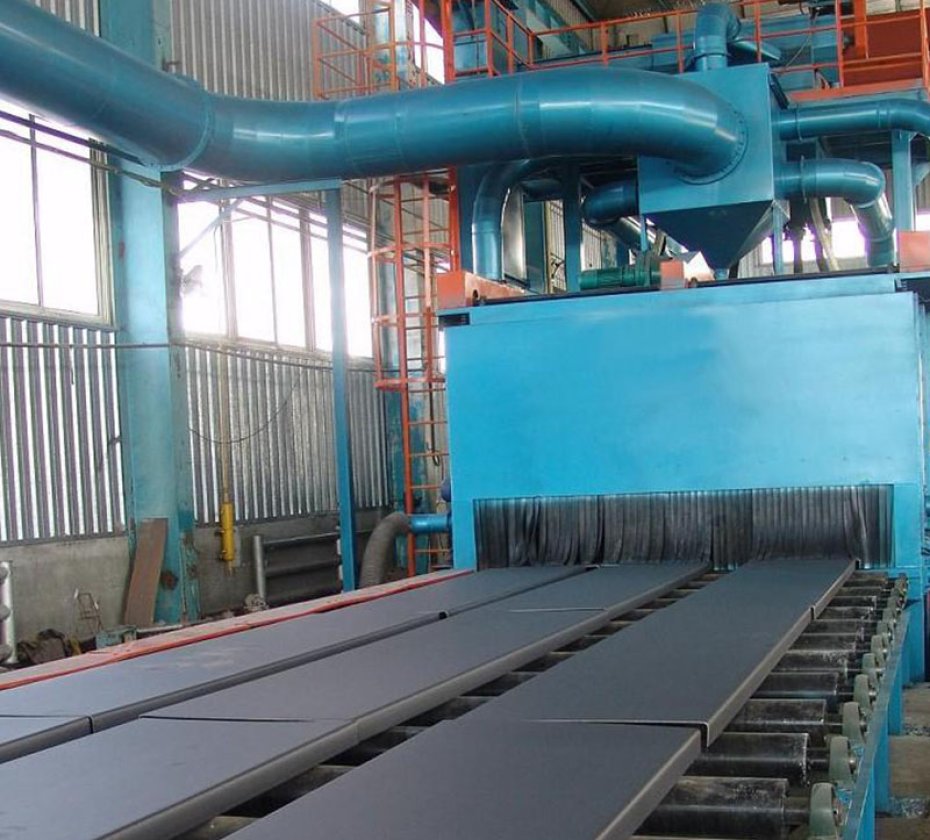

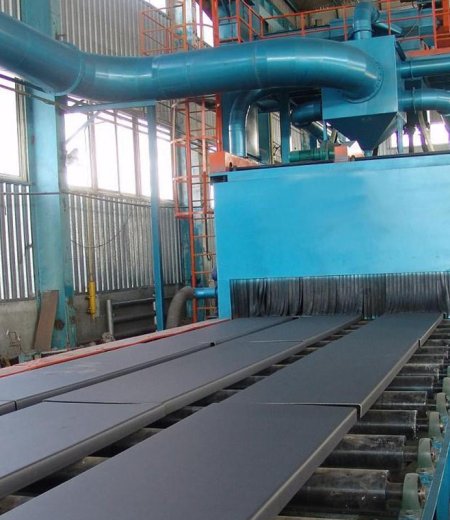

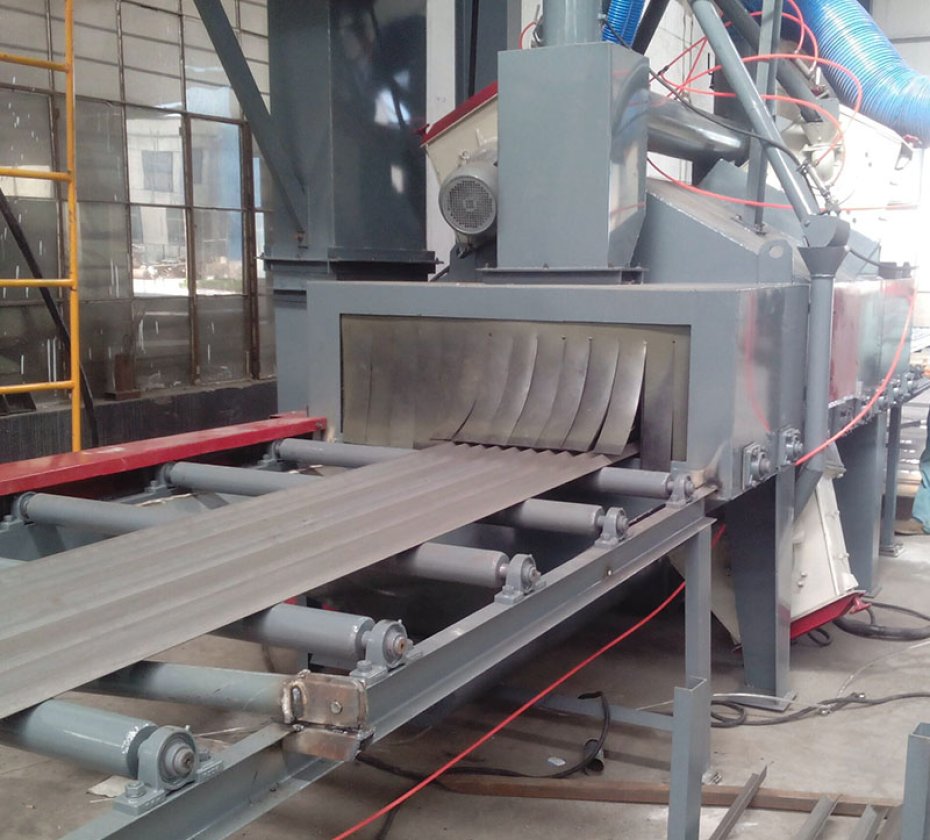

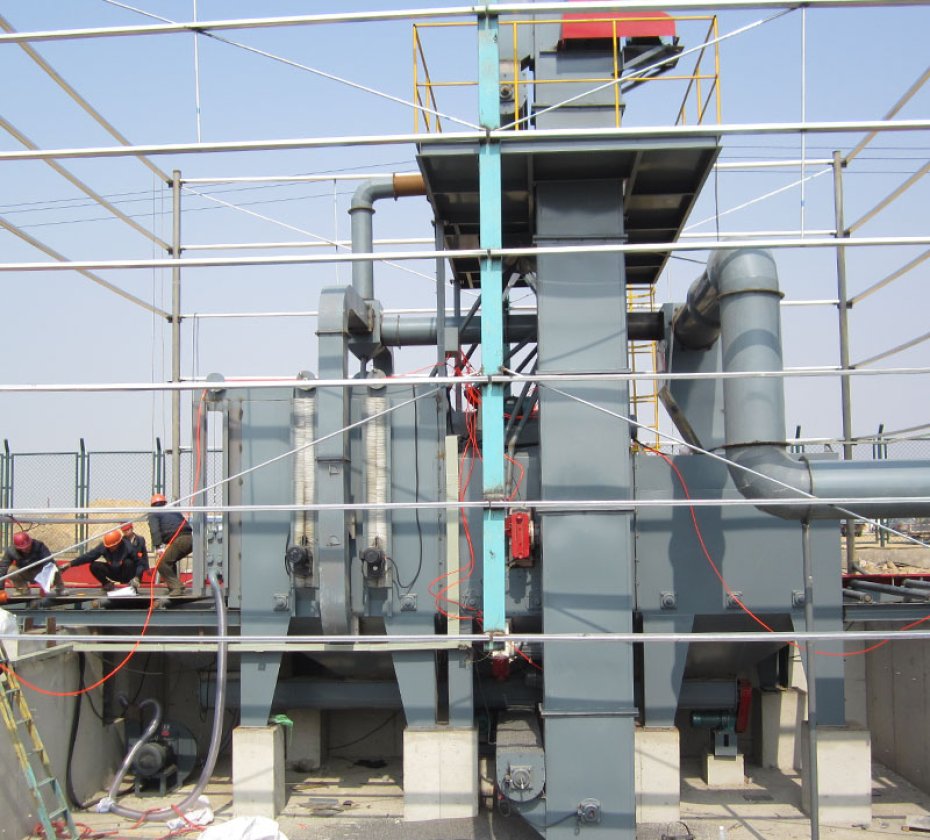

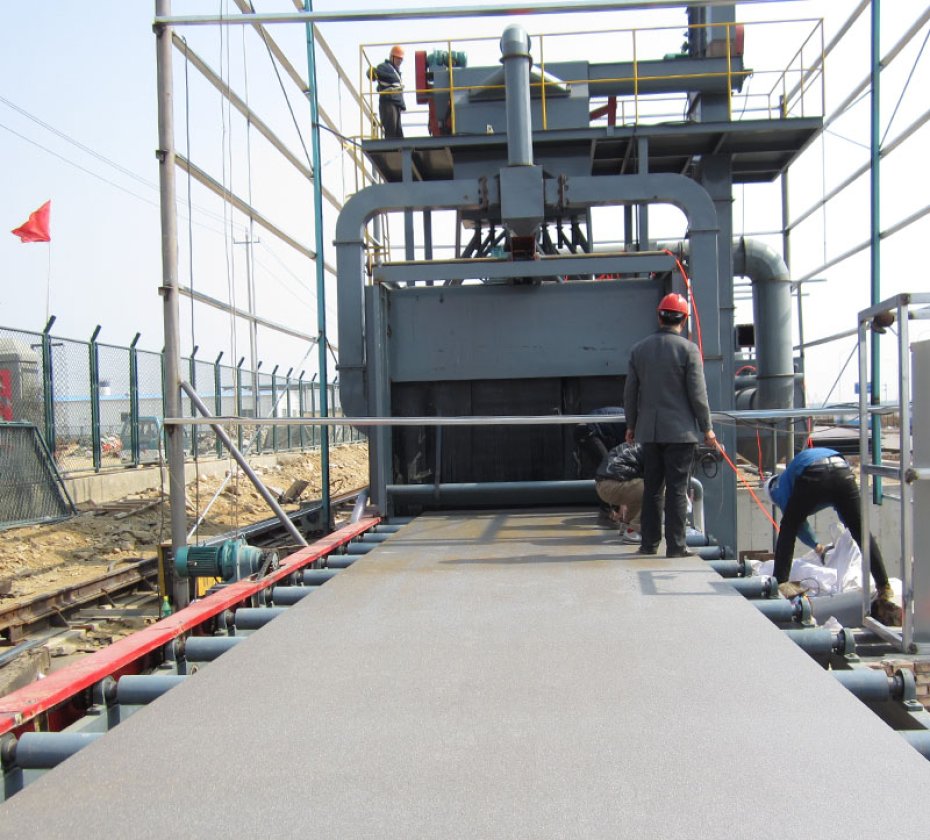

The Q69 series roller type shot blast machines is used for the cleaning of steel plate, steel structure and profile. This kind of shot blasting machine can not only remove the scale and dust during welding, but also can enhance workpieces fatigue resistance, reaching the purpose of improving the inner and surface quality of steel plate.
The rusting cleaning part (shot blasting) adopts high-efficient blast wheel and full shutter type shot sand separator. The sweeping machine adopts specially made high-strength nylon rolling brush and high-pressure ventilator. The preheating and drying part of shot blasting machine may adopt various heating methods. The paint spraying part adopts high-pressure airless spraying method. The complete set of equipment is controlled by PLC, and is the large-size complete
It is mainly used for surface treatment(namely preheating,rust removal,paint spraying and drying )of steel plate and various structural sections,as well as for cleaning and srenghening of metal structure parts. Roller hearth blasting has the following advantages:
Improving corrosion resistance of mechanical products and metal profiles
Improving the fatigue resistance of steel and prolonging its service life.
Optimization of steel surface technology
It is good for cutting and precision blanking of CNC cutting machine.
Because the shape of steel is regular before being processed, it is advantageous to mechanical rust removal and automatic spraying anti-rust paint.
Greatly improving cleanup efficiency
Reduce labor intensity in cleaning up work
Lessen environmental pollution
PRODUCT SPECIFICATIONS
Type | Q69(customizable) |
The effective cleaning width(mm) | 800-4000 |
The room feed-in size(mm) | 1000*400---4200*400 |
The length of cleaning workpiece(mm) | 1200-12000 |
The speed of wheel conveyer(m/min) | 0.5-4 |
The thicksness of cleaning steelsheet(mm) | 3-100---4.4-100 |
The section steel specification(mm) | 800*300---4000*300 |
The quantity of shot blasting(kg/min) | 4*180---8*360 |
The first enclosed quantity(kg) | 4000---11000 |
Roll brush adjusting height(mm) | 200---900 |
Airness capacity(m³/h) | 22000---38000 |
Exterior size(mm) | 25014*4500*9015 |
Total power(except for dust cleaning)(kw) | 90---293.6 |

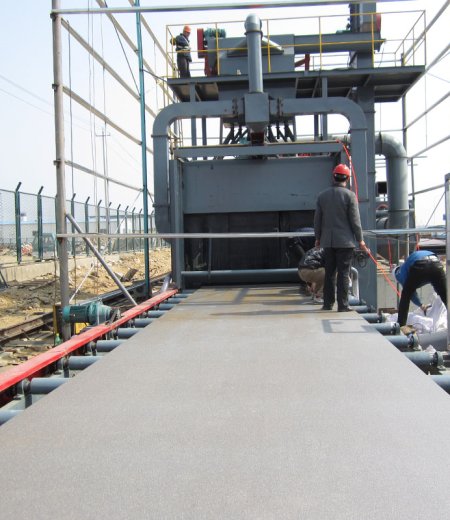

Roller Conveyor Systems
Composition: Feeding rollers, middle rollers, out-feeding rollers.
Loading capacity: 2 tons per meter.
Rollers Distance: 1 m.
Rollers Speed: 0.5-4 m per min.
Drive: Variable speed reducer.
Rollers in the blasting cabinet are protected by special alloy jacket with lifetime over 4,000 hours.
Blasting Chamber
Composition: Main blasting chamber, 2 auxiliary blasting chambers.
Auxiliary Blasting Chamber:Four layers rubber curtains
Main Blasting Chamber: blasting wheels are mounted on chamber in different angles
Divided & Modular Chambers: Designed accordingly
In the blasting chamber, the wall is protected by SPMn13 material liner and 65Mn protective liner, easy tear open outfit replacement.

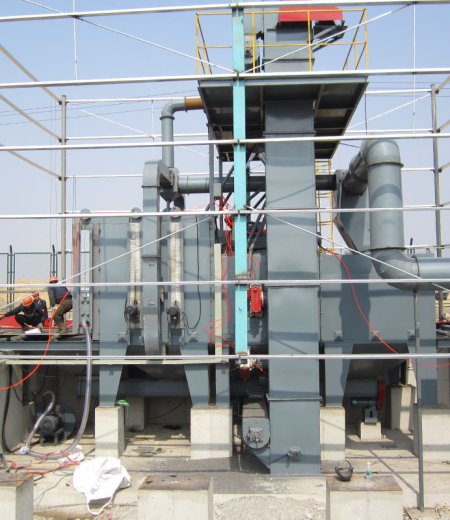

Abrasive Recycling System
Longitude Screw: collect abrasive at the bottom.
Horizontal Screw: Delivery abrasive from longitude screw to bucket elevator.
Bucket Elevator:Lift abrasive to separator.
Separator:Separate & get qualified abrasive

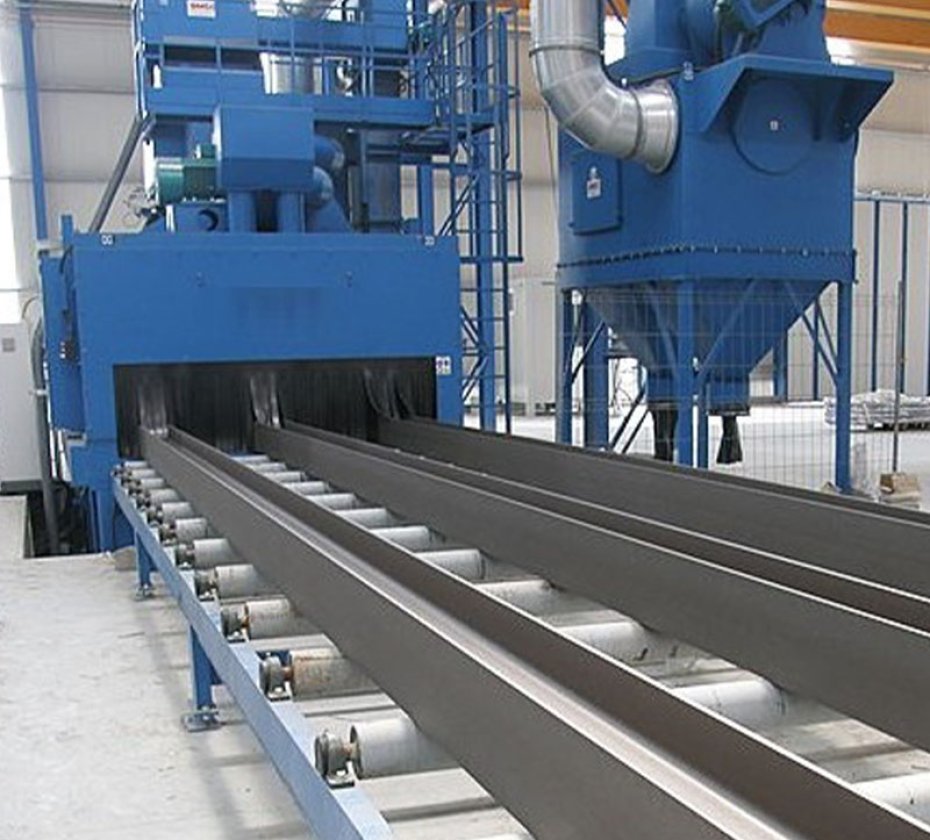

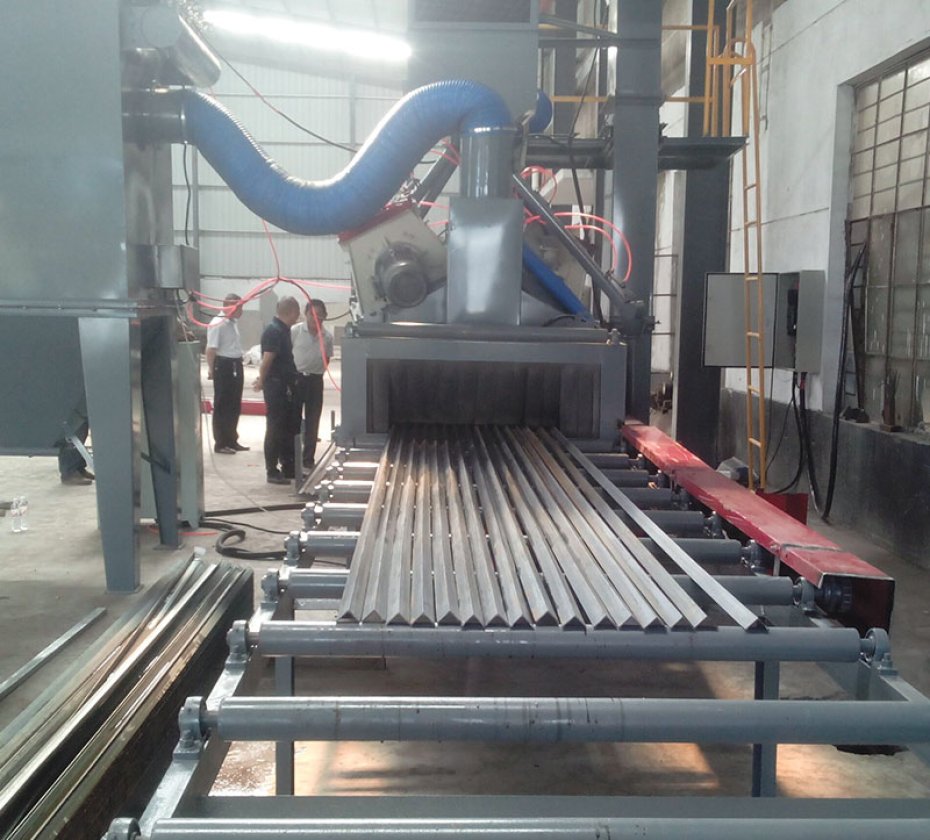

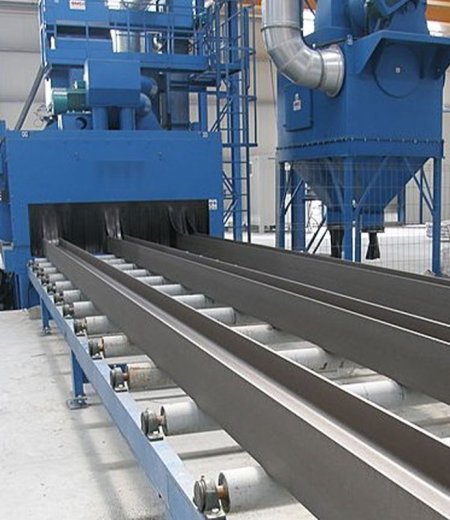

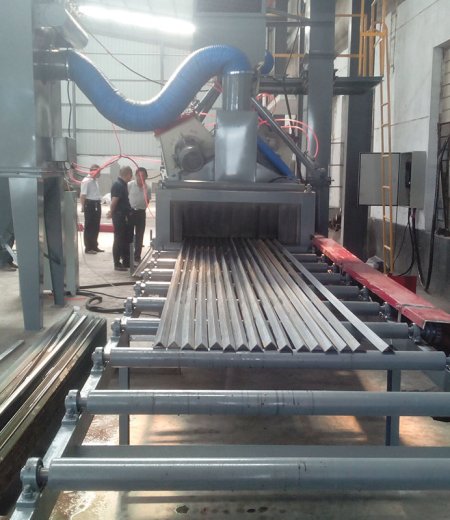

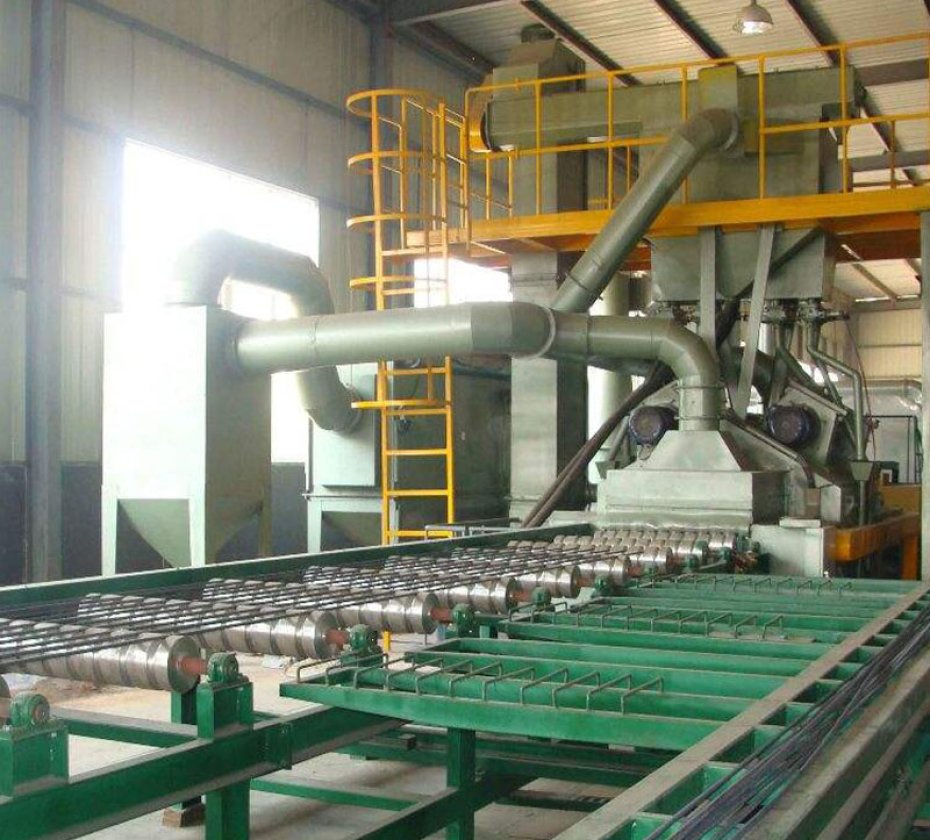

Q69 Steel Profiles shot blasting machines are used to remove scale and rust from metal profiles and sheet metal components. It applies to surface rusting and painting art of shipping, car, motorcycle, bridge, machinery, etc. By combining a roller conveyor with the appropriate crossover conveyors, individual process steps such as blasting, conservation, sawing and drilling can be interlinked.

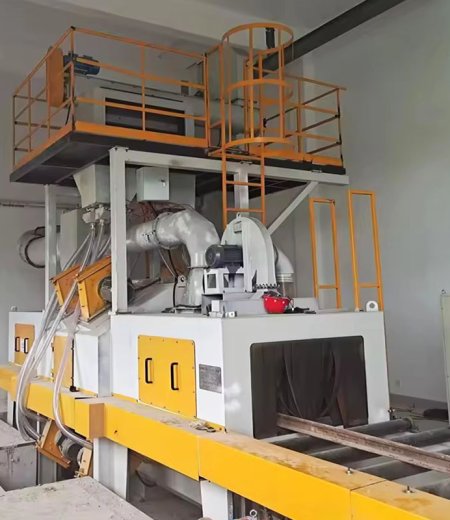

Split type machine (include :main shot blasting machine and dust collector)
The steel strip shot blasting cleaning machine is specifically designed for high-performance shot blasting, descaling, and surface cleaning of carbon steel strips, stainless steel strips, and low alloy strips.
Model: QGW10、QGW15、QGW20、QGW25、QGW30、QGW140、QGW200
